Maximum glass, minimum frame
A 35mm interlock and panes up to three metres wide. When the doors are shut, you are looking at the garden rather than at aluminium.
Why a slider often beats a bi-fold
A bi-fold is a stack of frames. Closed, you see every one of them. A slider on the same opening shows two vertical lines and a 35mm interlock, which on a wide rear elevation is the difference between a window and a wall of frame.
The trade-off is that you can open at most half to two-thirds of the aperture, depending on the panel count. For rooms used all year with a view worth keeping, that is usually the right compromise - and the running gear on a large slider, once bedded properly, is the smoothest thing in the range.
Specification
- Interlock sightline
- From 35mm
- Maximum pane
- 3m wide, 2.7m high
- Panels
- 2, 3 or 4, with pocket options
- Threshold
- Standard or flush level-access
- U-value
- From 1.3 W/m²K
- Guarantee
- 20 years

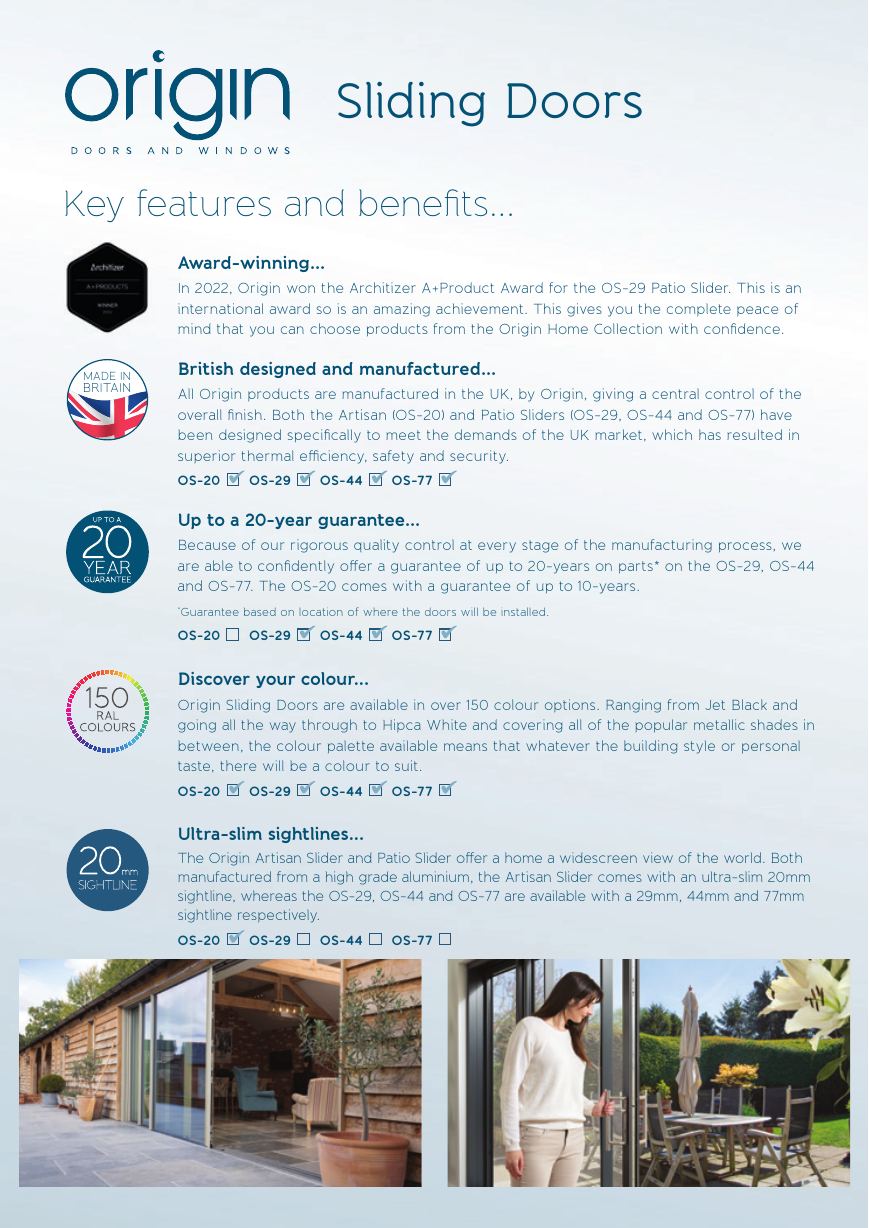

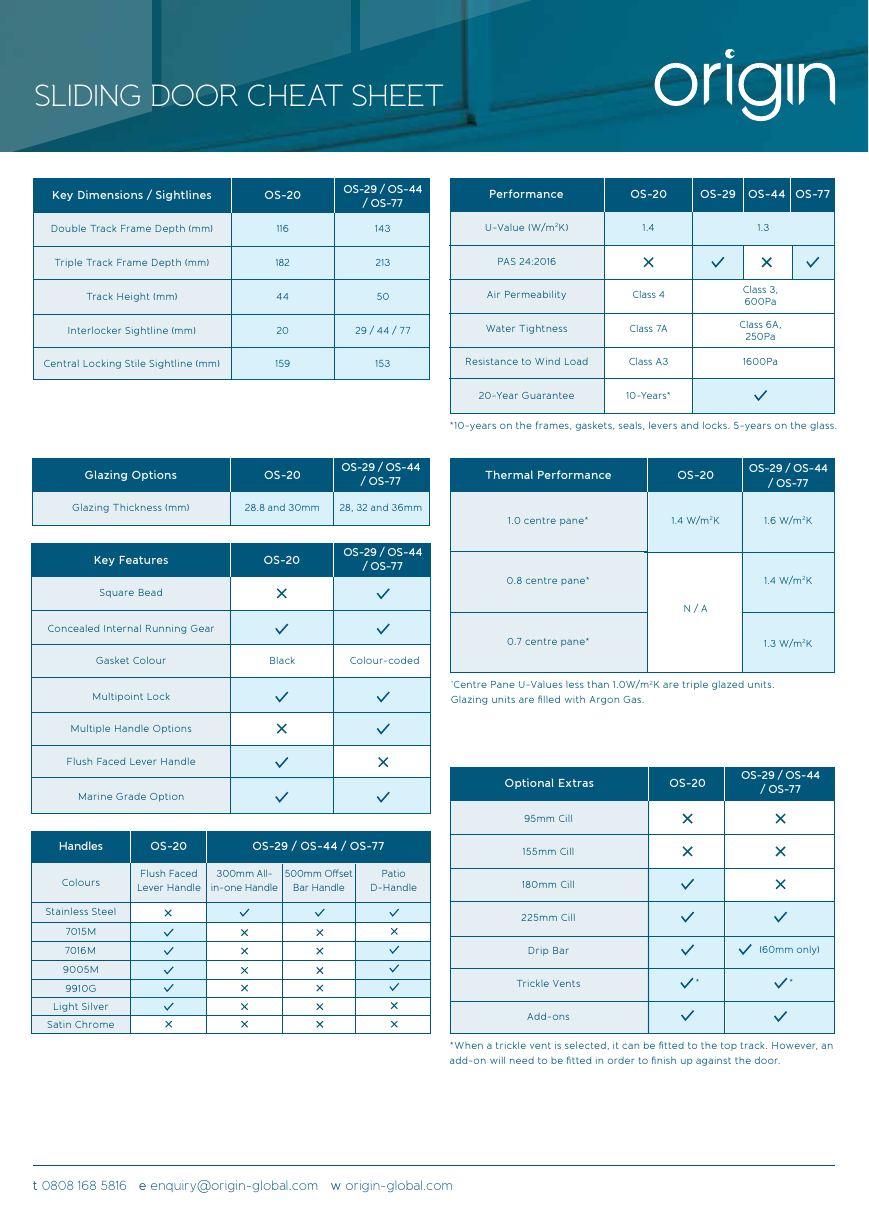

Brochures
Brochures & Downloads
Read any Origin brochure here in our page-turning viewer, or download the original PDF.
